fordson super major project

gruffydd · Post by **gruffydd** » Wed Mar 27, 2013 9:23 pm

hi all thought i might post this on here my dad has bought a super major a couple of months back and we are now in the middle of restoring it the engine was seized as the person that we bought it from bought it from his friend which said that it just stopped running and seized, so he purchased a new engine from a compressor yesterday and are in the middle of taking the bits off the other engine onto the compressor, the compressor engine is also a new performance type so has a bit more grunt

will post more pictures after more progress is made

gruffydd · Post by **gruffydd** » Wed Mar 27, 2013 9:24 pm

hi can anyone tell me how to post pictures i have a photobucket account but do not know how to post pictures here
thank you gruffydd

gruffydd · Post by **gruffydd** » Wed Mar 27, 2013 10:30 pm

gruffydd · Post by **gruffydd** » Wed Mar 27, 2013 10:41 pm

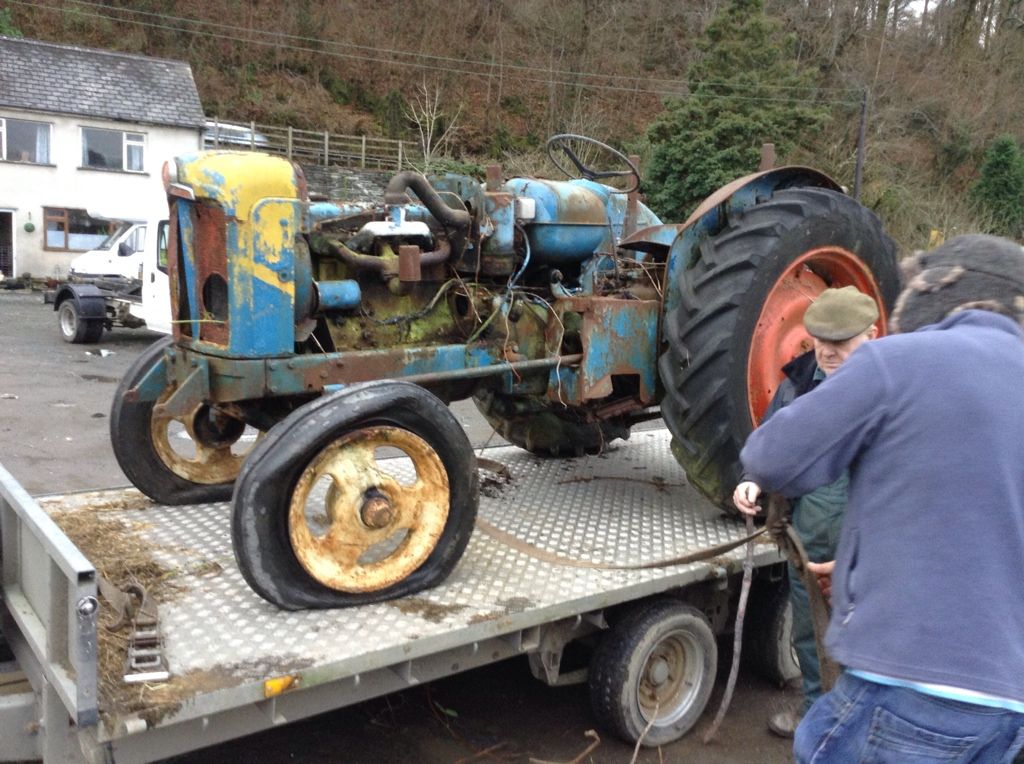

here it is on the trailer

doing the brakes

gruffydd · Post by **gruffydd** » Wed Mar 27, 2013 10:57 pm

splitting the tractor to change the engine

the new engine

i already had another clutch plate as i accidentally ordered 2 for my power major

Mjg1705 · Post by **Mjg1705** » Wed Mar 27, 2013 11:04 pm

Nice project - do you know anymore details about it ?! Have any idea on age - casting codes. Looks like an interesting one so be nice to see a walk through of the restoration

gruffydd · Post by **gruffydd** » Thu Mar 28, 2013 6:34 pm

hi i went and had a look at the tractor today and found a few casting codes but i dont know if they make any sense

E1A DDN 172

P14D

T2

E1ADDN 5015 i think

engine number behind pump on the original engine 1 or 7 52251

hope at leas one of them makes sense

Mjg1705 · Post by **Mjg1705** » Thu Mar 28, 2013 8:15 pm

well p14D Is December 14th 1960 - so wherever that was cast it was made that day ! so it's an early super !

gruffydd · Post by **gruffydd** » Thu Mar 28, 2013 9:02 pm

oh great

thank you can you make anything out of the serial number for the engine ?
thank you btw i just sold my power major

because i have seen a new performance dexta or a early non live drive dexta

that i hope to buy

Mjg1705 · Post by **Mjg1705** » Thu Mar 28, 2013 9:17 pm

You ain't got enough numbers in that serial - but that is similar to a 1960 serial ! So all original !! Have another look see of you can make it clearer - ooo nice - get the new performance super dexta !

Mjg1705 · Post by **Mjg1705** » Thu Mar 28, 2013 9:19 pm

Sorry - but 1572251 is a 1960 power major ?! So defo re-look at that engine number ! Cold be the difference between a super or a power major you have !

gruffydd · Post by **gruffydd** » Thu Mar 28, 2013 9:54 pm

ah it is a super as it has the disk brakes and draft control and it has the super style front tomb stone it might have had a engine replacement at some point in its life

Mjg1705 · Post by **Mjg1705** » Thu Mar 28, 2013 10:34 pm

Yeh ideal - yeh may of had an engine replacement - you still got the top link rocker part on the backend ?!

gruffydd · Post by **gruffydd** » Thu Mar 28, 2013 10:41 pm

the top link bracket ? yeah thats still on it with the two pin holes

Mjg1705 · Post by **Mjg1705** » Thu Mar 28, 2013 10:48 pm

Yeh the bit that goes from the hydraulic top to the bracket on the back of the axel. that's good - your back wheels are wrong though - you need the scallop centres not rounds.

super6954 · Post by **super6954** » Fri Mar 29, 2013 6:58 am

Hi
I see from your pictures that super has the old dead drive gearbox fitted not the usual 2 stage clutch/ gearbox for live PTO, Hyds.
I've seen a few here in Canada that are dead drive supers. but never a regular farm tractor in the U.K, so I wonder what the deal is there. was it in from new or is that a working repair too

.
Regards Robert

Mjg1705 · Post by **Mjg1705** » Fri Mar 29, 2013 1:37 pm

Hi rob- I think that live drive may have still been an option in 1960 - but seems it was a super I would have said it should have been standard ! But i think it became a standard feature in 61/2 but I'm sure someone Else on here has better history ! Maybe a casting date of the gearbox may be helpful to see if it was original of a replacement - code is around the gearbox filler cap on the left hand side near the pto engagement lever.

fenhayman · Post by **fenhayman** » Fri Mar 29, 2013 8:49 pm

I bought a 1961 Super Major to drive a pto driven small bale baler (International 440).
After I had paid for it I found it to be non live drive.
If you can bale an uneven heavy crop of hay with a standard PTO you are, in my opinion, a proper tractor driver.

gruffydd · Post by **gruffydd** » Sat Mar 30, 2013 9:00 pm

yeah i think that live drive was an option through the producution of the major up until 1964 but by then the advantages of the live drive was known how can you tell the difference in the gearbox beetween the live drive and non live drive or can you not as maybe someone had changed it to non live drive, dad bought the tractor and gambled if it was or not live drive thank you for your help

Roadless63 · Post by **Roadless63** » Sat Mar 30, 2013 11:51 pm

Live drive was an option up to '64, you see a few in linconlnshire/cambs quite late but non live since they were mainly ploughing/cultivating I suppose. The super that made around 12k a few years back at cheffins sale was non live drive I seem to recall.
You may need to look at your injection pump on the "new" engine since the governor may be different than that of a tractor one.
Good luck with the rebuild!

BearCreek Majors · Post by **BearCreek Majors** » Sun Mar 31, 2013 3:04 pm

Looks like you'r going to have a nice tractor there when your done!
What was the cover/guard for in front of the left running board?

Pat

gruffydd · Post by **gruffydd** » Sun Mar 31, 2013 9:38 pm

hi pat do you mean that shiny bit thats sticking out on the side it was a bracket of some sort

gruffydd · Post by **gruffydd** » Mon Apr 01, 2013 8:55 pm

the next job was to change the cover over to hold the side rails

just need to change the sump over now and it will be ready to fit

i just hope that the timing is still ok after removing the gears

gruffydd · Post by **gruffydd** » Mon Apr 01, 2013 8:57 pm

http://s1071.photobucket.com/user/gruff ... sort=3&o=0

gruffydd · Post by **gruffydd** » Sun Jun 16, 2013 9:52 pm

http://s1071.photobucket.com/user/gruff ... sort=3&o=2

http://s1071.photobucket.com/user/gruff ... sort=3&o=1

http://s1071.photobucket.com/user/gruff ... sort=3&o=0

the only problem is the oil leaks coming from behind the cover so it will have to come off again

but she runs well
