Solenoid part numbers

[Billy26F5]

Hi all,
Been looking around but can't find the Lucas part no. of the later type solenoid (E1ADDN-11450C), the earlier one (E1ADDN-11450B) was a ST950, 76411. Could only find this post of Barry M's about such details. https://www.fordsontractorpages.nl/phpb ... 050#p12050 The change occurred in early September 61 (957E-89261, 1612882), the later kind is a 2ST. If anyone still has a true original fitted I would like to know its part no.. I know of a few 2ST part nos., but they come with extra spade terminals not used on Fordson's.
Sandy

[Kjetil]

Hi


I have uploaded some photos of a solenoid, see link https://postimg.cc/gallery/VJzrbfD

Would this be the one you are looking for?

It was installed on a 63 model

The rest of the tractor is quite original, I belive, so maybe the solenoid also is

Kjetil

[Billy26F5]

Thank you very much, that's just what I wanted! You even have the cover, E1ADDN-14693, a very rare part, but nonetheless important. I see the button was covered with a steel cover, presumably to prevent people using it when the solenoid or starter switch or associated wiring failed. Unfortunately, the one thing I can't read is the Lucas part no., presumably starts with 76xxx, it should also have LUCAS 2ST stamped on there as well as a date reasonably in line with the casting codes on that tractor.
Sandy

[Kjetil]

I made a closer look at the solenoid, and took a few more pictures, see the link again.

It seems to me the number is 76491E 12, but cant find Lucas written anywhere

[jan]

Hi All
I can confirm ,that exact this Solenoid was fitted to my Super Major (1617909) that i restored in 2003/2004.The Tractor was very close to original,the electric and wirering too.

Jan

[Billy26F5]

Thanks very much both, this seems like it'll be a hard one to find exact replacements of. I'm afraid I can't see the extra pics.
Sandy

[Kjetil]

Is this link functioning: https://postimg.cc/jnJ84tvt

[Billy26F5]

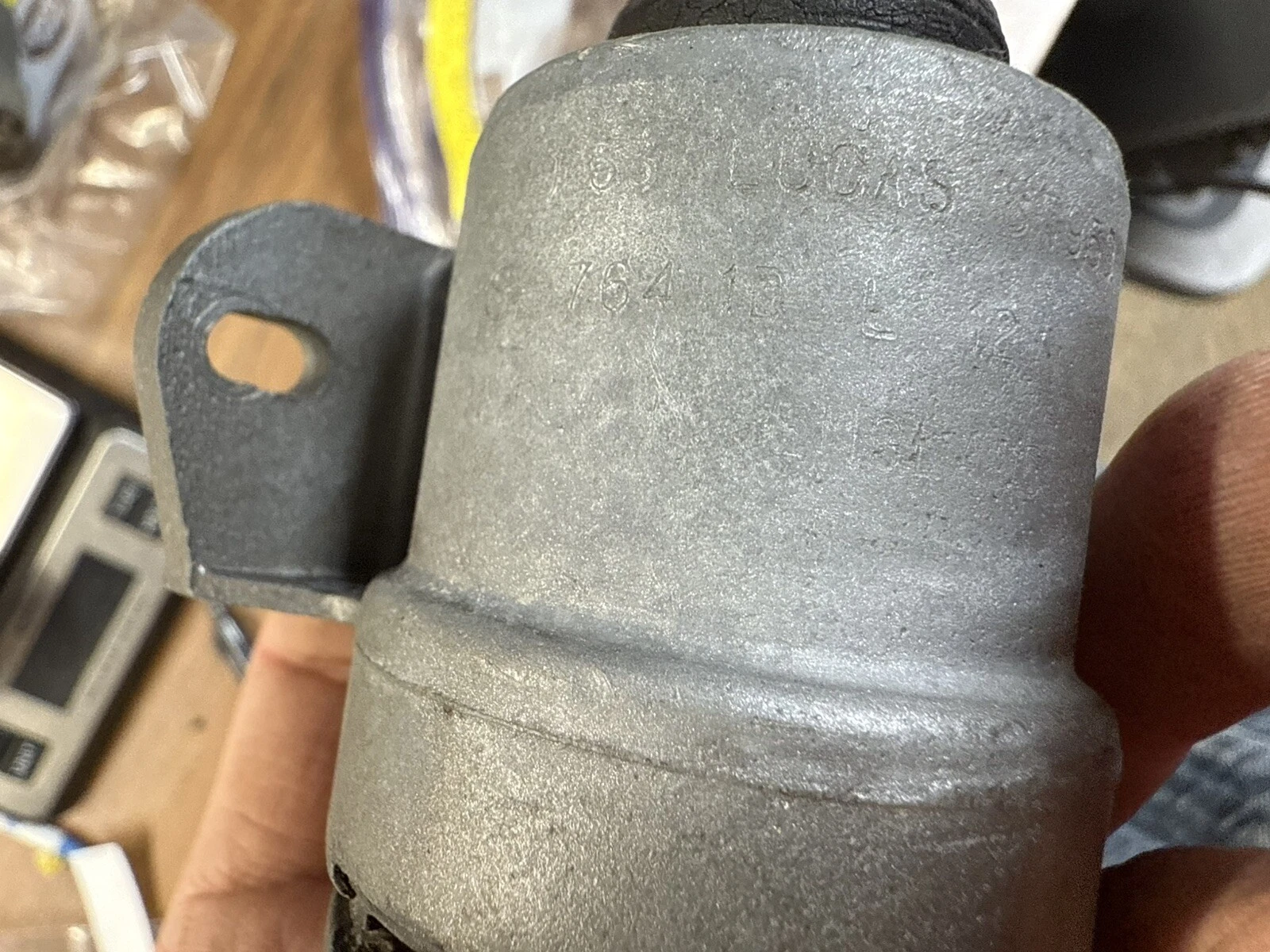

Excellent, thanks very much. I belive the LUCAS 2ST and date is nearby, a bit like this one: https://i.ebayimg.com/images/g/12MAAOSw ... l1600.webp

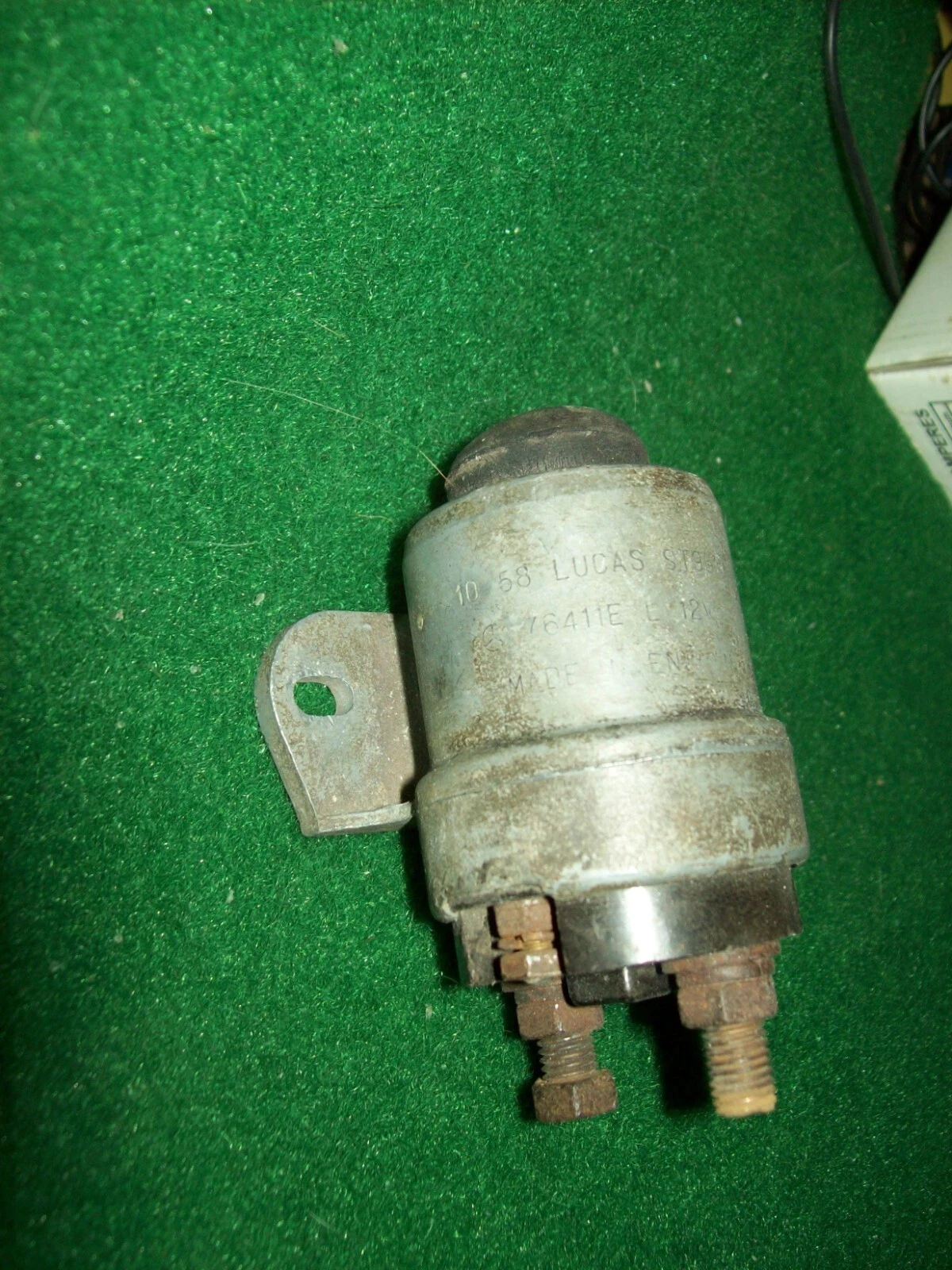

And some older ones for extra reference, these are Lucas 76411: https://i.ebayimg.com/images/g/xGsAAOSw ... l1600.webp https://i.ebayimg.com/images/g/VmIAAOSw ... l1600.webp
Sandy

[Kjetil]

Hi
I removed som paint and found:

LUCAS 2ST
Made in England
76491E 12 V 7 63

See photos in the link: https://postimg.cc/gallery/PhkWfVY

Kjetil

[Billy26F5]

Excellent, thanks very much, and confirms it's probably original If yours is around that time. Am I right in thinking you have some service letters? If so send them to Henk, so he can put them on the FFCN. I'll be getting there soon with some of the stuff I've got here. I'll send you a PM if you need it too.
Sandy

[Billy26F5]

Added the Major serial for the change from Lucas 76411 to 76491.
Sandy
