Dexta Electrical Diagram

[duffincart]

Hi
Does anyone have a diagram for dexta wiring that has a five terminal lucas regulator,
F,D,E,A and the extra one (A1) my set up also has light switch and key switch combined.
I think the five terminal is the older regulator. I am not sure if the isolator key switch being separate or combined is the original set up, my dexta is early 1960.
I think i have it sussed using the section 9 electric diagram in the online manual, that has four terminal regulator and separate key sw isolator though.

Kind regards

[Billy26F5]

I've posted the old diagram elsewhere, here's where it came from.
viewtopic.php?f=12&t=8328
Sandy

[PghBill]

[Billy26F5]

If you use "hotlink for forums" instead of "thumbnail for forums" for posting a pic it will appear full size.
Sandy

[Mervyn Spencer]

Folk I'm sorry to hijack this post, been a bit dim lately. Please can you confirm for me that the numerals on the RED wires on the diagram eg. #2 from starter motor to solinoid and #3 from coil terminal on cluster switch to other terminal on starter motor?

[Billy26F5]

It's exactly as you say Mervyn.
Sandy

[Mervyn Spencer]

Thank you Sandy, sorry another question, is there a diagram for the separate key switch? I am planning on introducing a indipendent switch later on.

[Billy26F5]

Here's the manual with the late diagram near the end.
http://www.smallholderservices.co.uk/si ... electrical
There's also a service letter describing the new switch, I can post it if needed.
Sandy

[Mervyn Spencer]

Thank you Sandy, your are such a star, I notice that on the wiring diagram you sent me there is no connection point for the rear lights, however I do have a spare light switch only with all the light connectors, I'm sure the service letter will explain all that. Please I would love a copy of the service letter Sandy.
Regards
Mervyn.

[Billy26F5]

Service letter coming next post I'm afraid.
The side/rear lights and number plate light (and socket) connect to the S.T. terminal on the light switch.
Sandy

[Billy26F5]

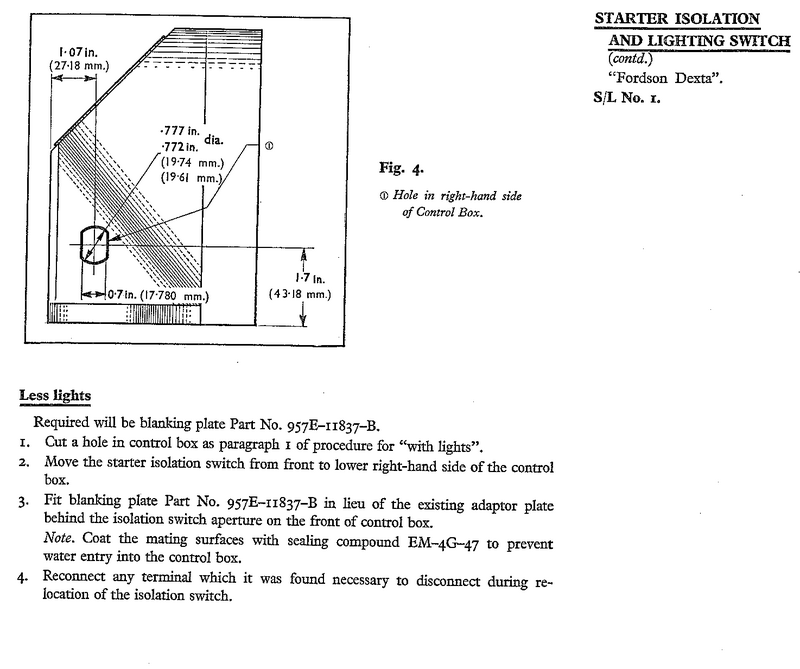

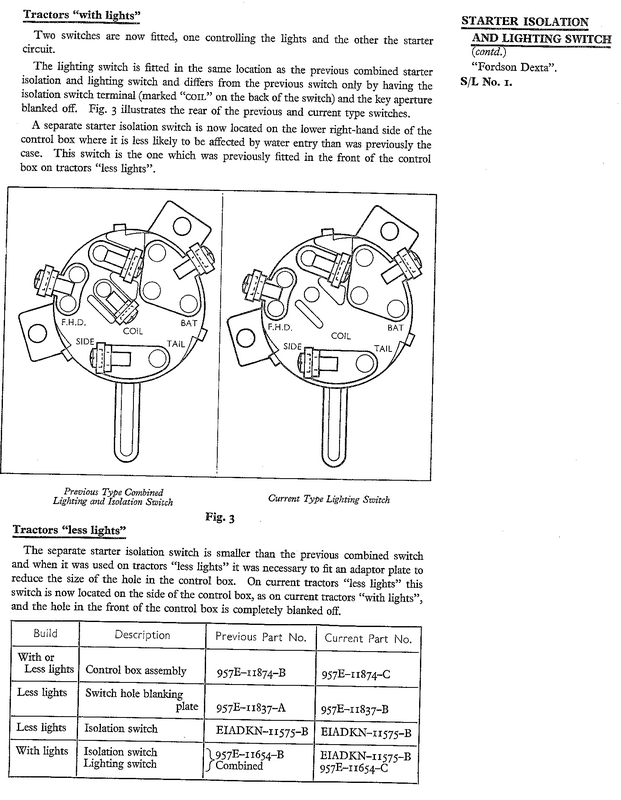

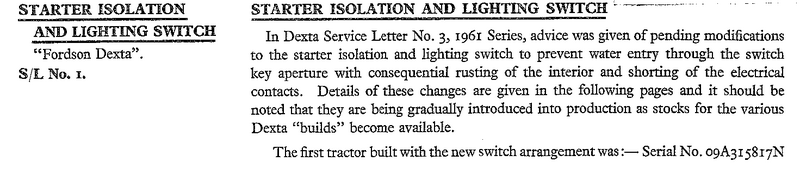

Service letter here:




Sandy

[Mervyn Spencer]

Good Morning Sandy, thank you ever so much for coping me the service letter, I am sure it will be very helpful. Do have a wonderful day.
Mervyn Spencer.
